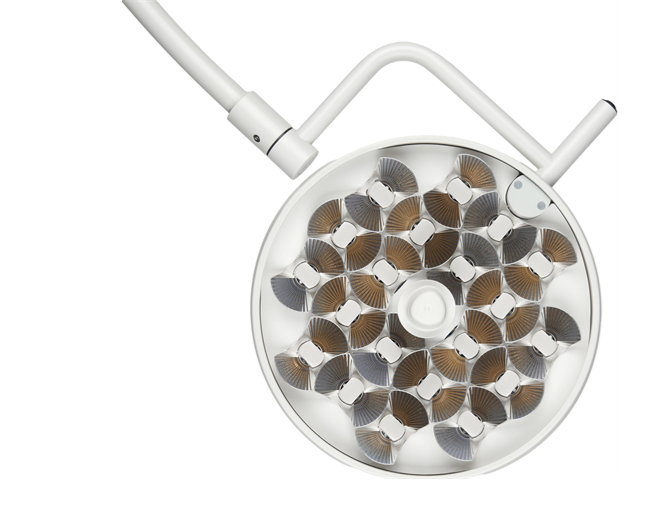

LED Surgical Light
KLYO E350
100,000 lx
Focus Size
6 steps adjustment (max: 28cm(11") / min: 17cm(6.7"))
Illumination Intensity
160,000 lx (Max.)
Color Temperature
3,500 K / 4,000 K / 4,500 K / 5,000 K / 5,500 K
Endo Mode
Suitable for endo-surgery by one click.
Intuitive Control Panel
touch sensor control
Lens LED System
Lower heat emissions & less
consumption of energy
Center Grip
Quick controller & Autoclavable handle
Specifications:
Technnical E350
| DESCRIPTION | E350 |
|---|---|
| Light technology | Dual reflector technology |
| Light intensity | 100.000 lux |
| Electronic dimming | 45-100 % |
| Focusable light field diameter at 1m distance (d10) | 170 |
| Color temperature | 4900 K |
| Working distance below the light head | 70-150 cm |
| Service life of the LEDs | 60.000 h |
| Color rendering index Ra | ≥96 |
| Red rendering index R9 | ≥96 |
| Number of LEDs | 18 |
| Power consumption | 14 W |
| Increase of temperature at head height | <1° C |
| Light head weight | 3 kg |
| Light head diameter | 272 mm |
| IP protection class | IP-42 |
| Control panel | On the light head |
| Electronic field adjustment | Yes |
Tablet for Wireless
Control
Full HD Wireless Camera
| Clasification | Description |
|---|---|
| Camera Block | SONY |
| Image Sensor | 1/3' Exmor CMOS / IMX-136 |
| Lens | 30x optical zoom, 12x digital zoom Focus lenght 4.3 mm to 129 mm. Focus /Iris - Auto o Manual |
| Picture Quality | Full HD 1080i(1920*1080) |
| Digital Zoom | 12x digital zoom |
| Ouput | 1xHD DVI, 1X HDMI 1.4 |
| Resolution | 2.14 Mega Pixel |
4K Wireless Camera
| Clasification | Description |
|---|---|
| Camera Block | SONY |
| Image Sensor | 1/2.5" type "Exmor R" CMOS |
| Lens | 20x optical zoom, Focus lenght 4.4 mm to 88.4 mm. Focus /Iris - Auto o Manual |
| Image Quality | 3840 x 2160 (4K Ultra HD) |
| Digital Zoom | 12x digital zoom |
| Video Signal | 4K 2160p 25/30 Hz |
| Resolution | 8.51 Mega Pixel |
Backup Battery
| MODEL | VOLTAGE | Description |
|---|---|---|
| E600 / E800 | DC 24 V | - Over Voltage Detection |
| - Under voltage Detection | ||
| - Discharging Over Current Detection | ||
| - Short Circuit Detection | ||
| Battery backup up to 4 hours of operation | ||
| 4K 2160p 25/30 Hz |
Technical Specifications
| MODEL | E600 |
|---|---|
| Installation | Ceiling / Mobile / Other |
| Head Size (cm) | 58.5 cm |
| Qty of LEDs (ea) | 54 |
| Intensity (lx) | Max 160,000 a 1 M |
| Intensity Control | 8 steps (40,000 lx - 160,000 lx) |
| CRI (Ra) | 96 |
| Color Temperature (K) | 3,500 -5,500 |
| Light Field Size | 17cm - 28cm at 1 M |
| Depth of Illumination (cm) | 100 (Ec 20%) 52 (Ec 60%) |
| Housing Material | Aluminium (antibacterial powder coating) |
| Autoclavable handle | Yes (2x) |
| LED Life Span (hrs) | 60,000 Hrs |
| HD or 4K Wireless Camera | Optional |
| Wall Controller - Tablet | Optional |
| Battery Backup | Optional |
| Certificate | CE/FDA/CSA |
| Power | 32W |
